Consultancy Services for The Construction of Shemkirchay Irrigation Main Canals – Azerbaijan

Project Name: CONSULTANCY SERVICES FOR THE CONSTRUCTION OF SHEMKIRCHAY IRRIGATION MAIN CANALS

Country: AZERBAIJAN

Finance Source: Government

Tags: Azerbaijan, Local, Irrigation, Construction Management, Supervision

Description of the Project:

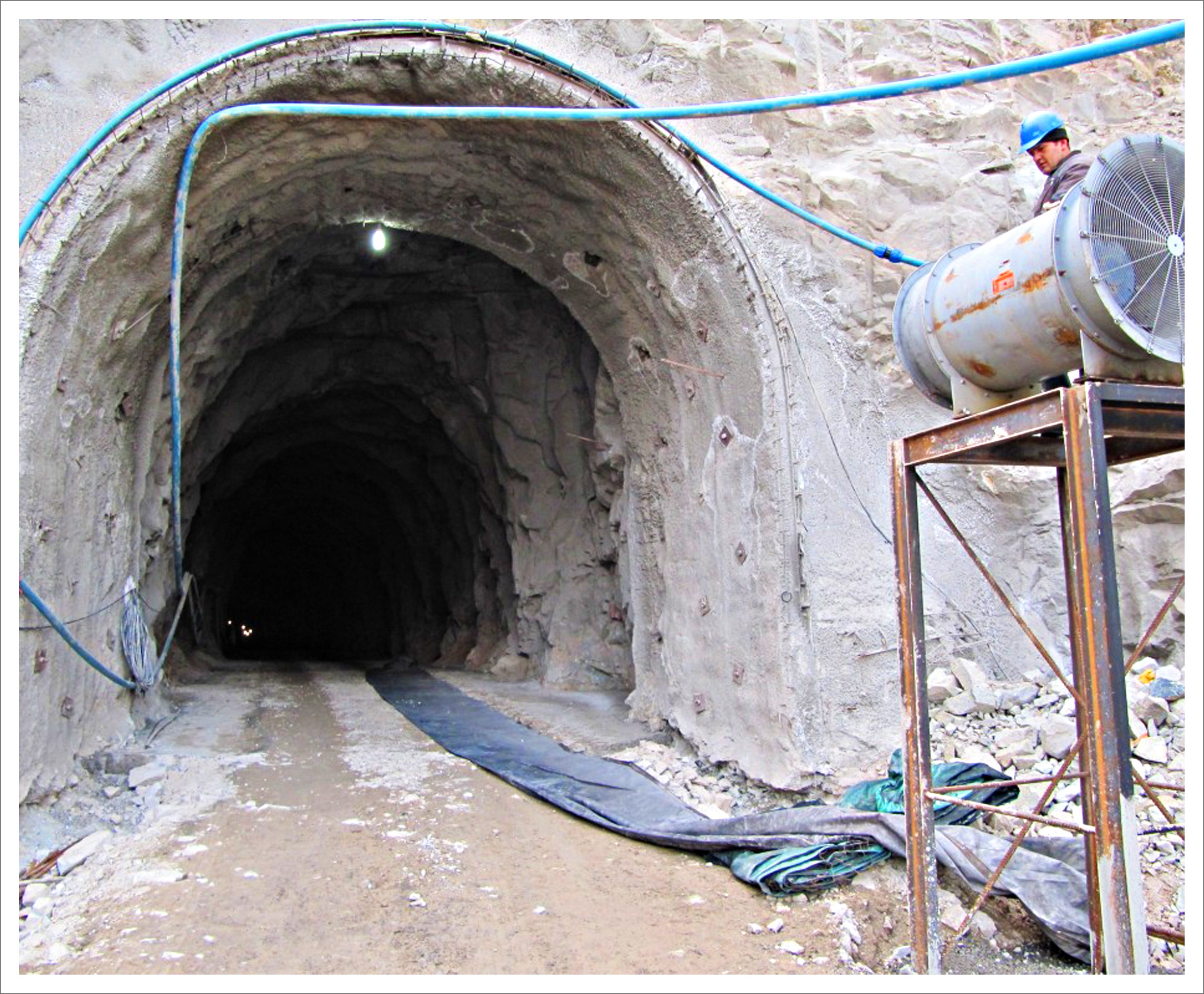

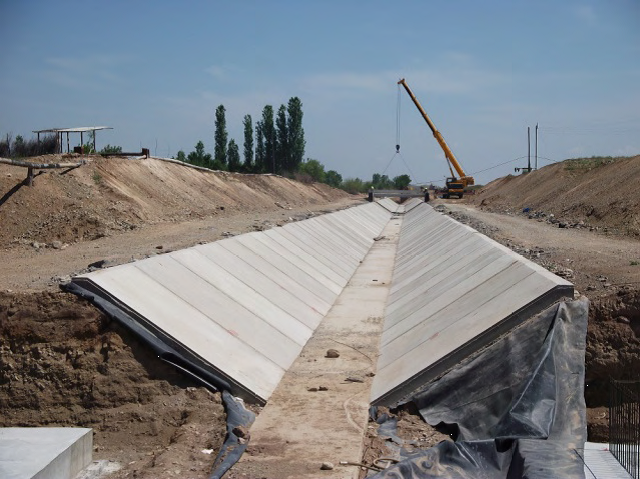

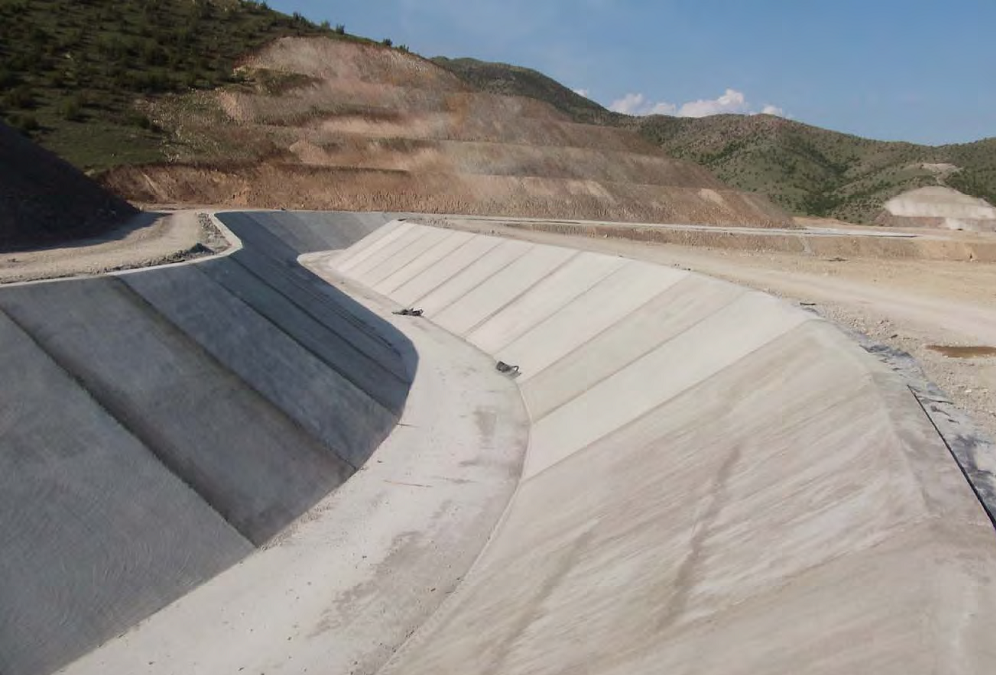

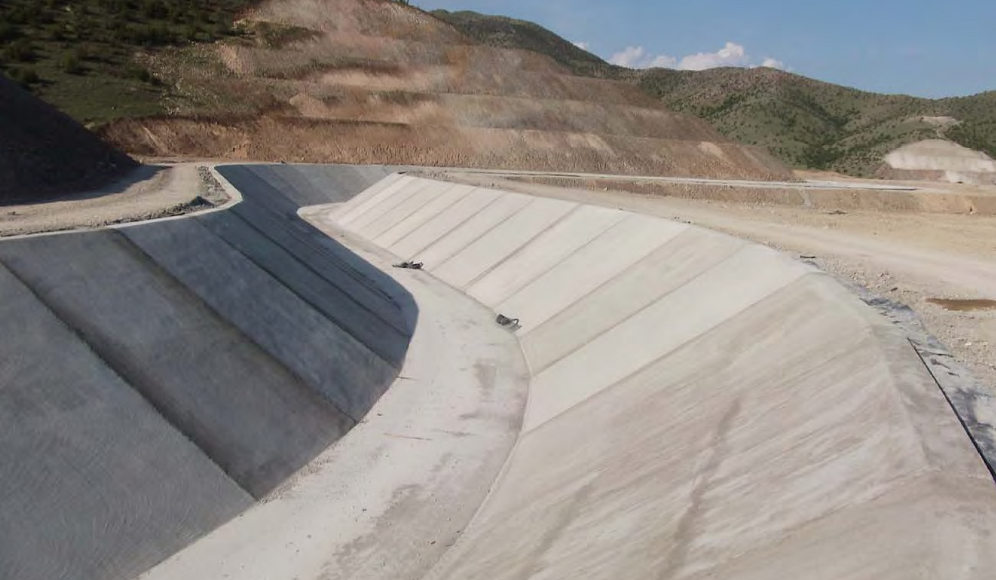

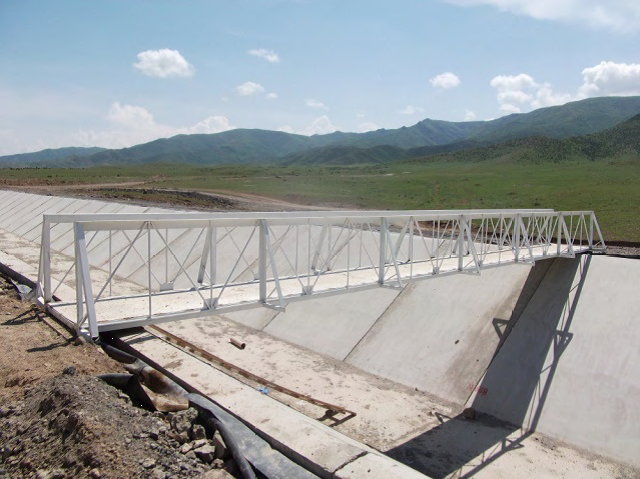

Shemkirçay Magistral(Main) Canal starts with the open canal of 111 m length receiving water from the tail water pond of the HEPP at the toe of the Shemkirchay Dam currently under construction on the Shemkirchay River and this canal continues in the form of a 7819 m long “main transmission tunnel” with 4.00 m diameter. At Km:5+590 of the main transmission tunnel, water is diverted by a 272 m long branch tunnel to the steel penstock of the “Shemkirchay Left Bank Main Canal HEPP”. The penstock shall be of approximately 1800 m in length with 1800 mm diameter. The hydropower plant with 7 MW installed capacity is located at the end of the penstock. Shemkirchay Left Bank Main Canal, starting from the tail water pond of the HEPP, is of 27 km length. At the end of the main transmission tunnel, 1950 m long Shemkhirchay Right Bank Main Canal starts and at the end of this canal the penstock forebay is located. After the forebay this penstock, which is 4300 m long having a diameter of 2000 mm, is leading towards the “Shemkirchay Right Bank Main Canal HEPP” with an installed capacity of 11 MW to be located at the edge of the Shemkir-Gence Highway. After the tail water channel of the power house the channel is divided into two branches, one is the 7400 m long “feeding canal” leading towards the Shemkir Mashin Canal, and the other one is the 11 km long Shemkhirchay Right Bank Main Canal. With this project, it will be possible to irrigate 26335 ha agricultural area in the Shemkir Plain. Furthermore, the surplus water shall be conveyed by the “feeding canal” to the Shemkir Mashin Canal, which is a pumping channel. The deficient water demand of Shemkir and Gence Cities which amounts to 1,3 m3/s shall be also supplied with this project and water shall be pumped to the agricultural lands of Irmashli town that cannot be irrigated until now.

Description of Services Provided by TEMELSU:
• Overall technical and financial administration of the contract
• Construction Management and ensuring the quality required
• Supervision of laboratory tests
• Control and appraisal of progress and reporting
• Determining the value of approved variations and fixing new rates when required
• Issuing payment certificates
• Issuing Completion and Defects Liability Certificates
• Ensuring implementation of environmental, health and safety measures
• Advising the Employer on all matters related to the execution of the contract
